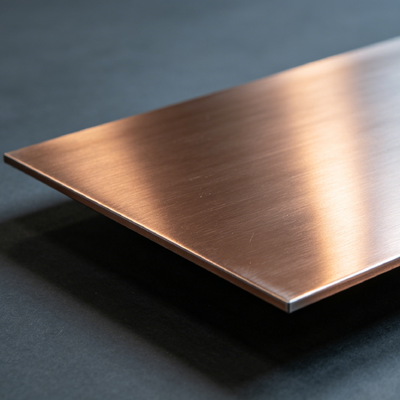

Marine Grade CuNi 70/30 Copper Nickel Plate ASTM B171 C71500 Anti-Corrosion Sheet
| محل منبع | شانگهای، چین |
|---|---|
| نام تجاری | TOBO |
| گواهی | ISO/TUV/SGS |
| شماره مدل | صفحه نیکل مس |
| مقدار حداقل تعداد سفارش | 1 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | بسته حمل و نقل استاندارد |
| زمان تحویل | 15-30 روز کاری |
| شرایط پرداخت | T/T، وسترن یونیون |
| قابلیت ارائه | 10 تن در ماه |
جزئیات محصول
| نام محصول | ورق ضد خوردگی ASTM B171 C71500 ورق نیکل مسی CuNi 70/30 درجه دریایی | ازدیاد طول | ≥ 30٪ |
|---|---|---|---|
| ضخامت | 0.5 میلی متر - 50 میلی متر | نقطه جوش | 2562 |
| کلمه کلیدی | صفحات ورق مس | پایان سطح | جلا داده شده |
| استاندارد | ASTM B122، ASTM B466 | سختی | ≥25J |
| استحکام کششی | ≥400MPa | عرض | 100 میلی متر - 2000 میلی متر |
| مدت قیمت | CIF CFR FOB EX-WORK | رنگ | زرد قرمز |
| نام محصول | صفحه نیکل مس | طول | 500 میلی متر - 6000 میلی متر |
| عملیات حرارتی | آنیل کردن، خاموش کردن و غیره | ضخامت دیوار | سفارشی |
| برجسته کردن | Marine Grade Copper Nickel Plate,CuNi 70/30 Anti-Corrosion Sheet,ASTM B171 C71500 Copper Plate |
||
توضیحات محصول
Marine Grade CuNi 70/30 Copper Nickel Plate ASTM B171 C71500 Anti-Corrosion Sheet
1. Product Description
Copper Nickel Plate is a solid solution strengthened copper‑nickel alloy containing approximately 10% or 30% nickel, with small additions of iron and manganese to enhance resistance to erosion and cavitation. The material is known for its stable passive layer in chloride environments, which provides excellent protection against localized corrosion such as pitting and crevice attack. Copper nickel plates are typically manufactured by hot rolling, followed by annealing and pickling. They can also be cold rolled to achieve precision thickness and improved surface quality. Standard product forms include flat plates, chequered (tread) plates, and profiled plates for heat exchangers. Available surface conditions include hot rolled, cold rolled, pickled, polished, and brushed finishes.
2. Product Applications
Marine Cooling Circuits: Main engine seawater coolers, auxiliary diesel generator coolers, central cooling system plates.
Offshore Drilling Rigs: Mud cooler plates, riser tensioner sheathing, BOP control fluid heat exchangers.
Desalination Plants: Brine heater shells, deaerator internals, condensate cooler plates in MED plants.
Fishing Vessels: Ice maker evaporator plates, refrigerated seawater (RSW) system heat exchangers.
Renewable Energy: Cooling plates for offshore wind turbine converters, tidal turbine components.
3.Product Advantages
Outstanding resistance to crevice corrosion and pitting – Passive film remains stable even in stagnant seawater conditions.
Excellent resistance to hydrogen sulfide and ammonia – Suitable for treated sewage outfalls and marine outfalls.
High resistance to cavitation erosion – Ideal for pump impellers and valve seats in seawater service.
Ease of machining and cold forming – Can be sheared, punched, and bent using conventional tooling.
Low maintenance and inspection requirements – Reduced downtime for marine assets.
Cost‑effective over equipment lifetime – Lower total cost of ownership compared to titanium alloys.
Wide acceptance by classification societies – Approved by ABS, DNV, LR, BV, CCS for marine applications.
4. Key Product Parameters
| Parameter | Value / Range |
| Material Designation | C70600 (CuNi10Fe1Mn), C71500 (CuNi30Fe2Mn2) |
| Manufacturing Route | Hot rolled (HR) / Cold rolled (CR) / Annealed & pickled |
| Thickness Available | 1.0 mm – 60 mm (CR up to 6 mm, HR above 6 mm) |
| Width Available | 500 mm – 2,500 mm (CR max 1,250 mm; HR max 2,500 mm) |
| Length Available | 1,000 mm – 6,000 mm as standard (custom up to 12 m) |
| Surface Finish Options | HR pickled, CR 2B, CR brushed (satin), polished #400, diamond tread |
| Proof Stress (Rp0.2, annealed) | C70600: ≥105 MPa; C71500: ≥150 MPa |
| Elongation (A50, annealed) | C70600: ≥30%; C71500: ≥25% |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
