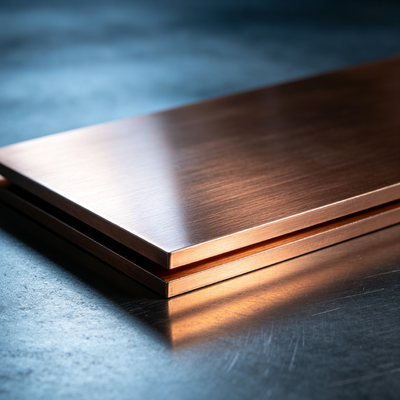

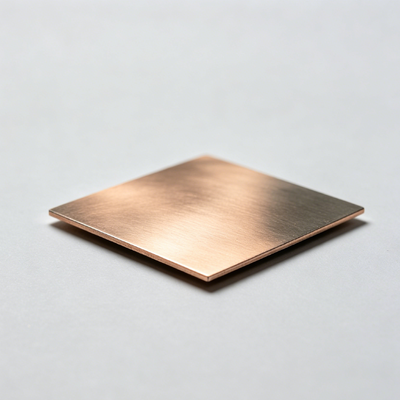

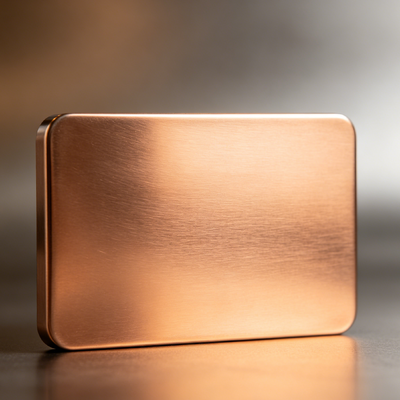

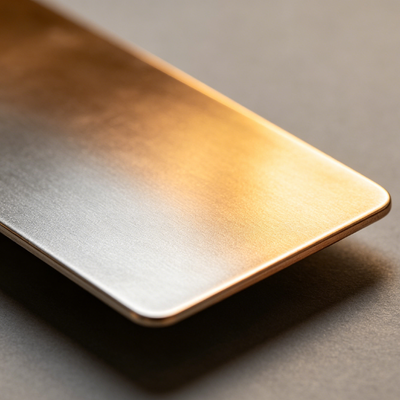

ASTM B171 C71500 Copper Nickel 70/30 Alloy Plate CuNi Sheet for Heat Exchanger
| محل منبع | شانگهای، چین |
|---|---|
| نام تجاری | TOBO |
| گواهی | ISO/TUV/SGS |
| شماره مدل | صفحه نیکل مس |
| مقدار حداقل تعداد سفارش | 1 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | بسته حمل و نقل استاندارد |
| زمان تحویل | 15-30 روز کاری |
| شرایط پرداخت | T/T، وسترن یونیون |
| قابلیت ارائه | 10 تن در ماه |
جزئیات محصول
| نام محصول | ASTM B171 C71500 ورق آلیاژی نیکل مس 70/30 ورق CuNi برای مبدل حرارتی | عرض | 100 میلی متر - 2000 میلی متر |
|---|---|---|---|
| رنگ | زرد قرمز | مدت پرداخت | T/T، L/C، Western Union |
| بسته بندی | بسته استاندارد دریا | قدرت تسلیم | ≥170 مگاپاسکال |
| سختی | HV 80-120 | سختی | ≥25J |
| رسانایی | ≥58٪ IACS | آلیاژی یا نه | آلیاژی است |
| ضخامت | 1mm - 10mm | مدت قیمت | CIF CFR FOB EX-WORK |
| مقاومت در برابر خوردگی | عالی | پایان سطح | جلا داده شده |
| مقاومت در برابر خوردگی | بالا | سطح | روشن، صیقلی |
| برجسته کردن | ASTM B171 C71500 Copper Nickel plate,70/30 CuNi alloy sheet,Copper Nickel plate for heat exchanger |
||
توضیحات محصول
ASTM B171 C71500 Copper Nickel 70/30 Alloy Plate CuNi Sheet for Heat Exchanger
1. Product Description
Copper Nickel Plate is a wrought copper‑nickel‑iron‑manganese alloy plate with excellent resistance to flowing seawater and impingement attack. The two principal grades are C70600 (90% copper, 10% nickel) and C71500 (70% copper, 30% nickel). Both grades offer a unique combination of mechanical strength, ductility, and resistance to stress corrosion cracking. The material naturally develops a thin, tightly adherent oxide film that passivates the surface and prevents further corrosion. Copper nickel plates are produced by hot rolling and may be cold rolled to achieve tighter tolerances and improved surface finish. They are widely used in critical seawater handling equipment where long service life and low maintenance are required.
2. Product Applications
Naval & Commercial Vessels: Sea water cooling mains, firefighting systems, bilge and ballast piping, sonar domes.
Power Generation: Condenser plates and tube sheets for steam surface condensers, district heating exchangers.
Desalination: MSF brine heaters, evaporator chamber linings, deaerator plates.
Oil & Gas Production: Topside seawater lift pumps, injection water filters, deluge system components.
Industrial Equipment: Chemical tanker cargo piping, heat exchanger baffles, hydraulic line cladding.
3.Product Advantages
Proven resistance to impingement corrosion – Withstands high‑velocity seawater (up to 3.5 m/s for C70600, 4.5 m/s for C71500).
Excellent weldability – No preheating or post‑weld heat treatment needed; filler metals CuNi10Fe1Mn and CuNi30Fe2Mn2 available.
Good resistance to sulphide‑induced corrosion – Suitable for polluted brackish water with controlled H₂S levels.
High ductility (annealed) – Elongation typically 30–45% for C70600, enabling severe bends and flanges.
Low macro‑fouling tendency – Naturally reduces attachment of marine organisms without coatings.
Stable mechanical properties from cryogenic to 300°C – Retains toughness down to −200°C.
Fully traceable production – Each plate marked with heat number and certified to ASTM/ASME standards.
4. Key Product Parameters
| Parameter | Value / Range |
| Alloy Grades | UNS C70600, UNS C71500, BFe10-1-1, BFe30-1-1 |
| Delivery Condition | Hot rolled (HR), cold rolled (CR), annealed (O), stress relieved (SR) |
| Thickness | 0.3 mm – 50 mm (standard); >50 mm available as plate |
| Width | Up to 2500 mm for cold rolled; up to 3000 mm for hot rolled |
| Length | Up to 8000 mm (longer on request) |
| Flatness | ≤3 mm per meter for annealed plate (EN 1652) |
| Surface Roughness (Ra) | 2B finish: ≤0.3 µm; Polished: ≤0.1 µm |
| Typical Hardness (HV, annealed) | C70600: 75–110 HV; C71500: 85–130 HV |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
